Advanced Virgin Coconut Oil Plant Machinery for Efficient Cold-Pressed Production
Our cold-pressed virgin coconut oil machine efficiently extracts high-quality virgin coconut oil while preserving its natural characteristics. The plant combines de-husking, de-shelling, peeling, shredding, washing, milk extraction, clarification, centrifugation, filtration, and oil storage in a streamlined processing setup.
80+
Machines Installed
23+
Countries Served
What Is a Virgin Coconut Oil Machine?
A virgin coconut oil machine is industrial processing equipment used to extract virgin coconut oil from fresh coconuts through controlled preparation, coconut milk extraction, clarification, separation, filtration, and storage processes.
The system is designed for cold-pressed virgin coconut oil production while supporting hygienic and efficient processing. Micro Fab Engineer provides integrated Virgin Coconut Oil Plant Machinery for commercial production requirements.
Product Specifications
| Specification | Details |
|---|---|
| Product | Virgin Coconut Oil Machine |
| Power | 15–20 HP |
| Processing Method | Cold Process / Centrifuge / Fermentation |
| Capacity | 1–5 Ton/Day* |
| Automation Grade | Semi / Automatic |
| Application | Virgin Coconut Oil |
| Brand | MFE 2018 |
| Approx. Order Value | ₹25,00,000 |
Our Virgin Coconut Oil Plant in Operation
Watch the Extra virgin coconut oil manufacturing plant to understand the complete processing flow, machinery arrangement, and production stages.
| Input Capacity | Output Production Capacity |
|---|---|
| 2,500 nuts / 8 hr | 150 litre / 8 hr |
| 5,000 nuts / 8 hr | 300 litre / 8 hr |
| 10,000 nuts / 8 hr | 600 litre / 8 hr |
| 20,000 nuts / 8 hr | 1,000 litre / 8 hr |
Virgin Coconut Oil Plant Capacity
As a reliable VCO plant manufacturer, Micro Fab Engineers offers virgin coconut oil plants with different processing capacities to meet the production needs of small, medium, and large-scale businesses. Our plants are available with input capacities ranging from 2,500 to 20,000 coconuts per 8-hour shift, with an estimated output of 150 to 1,000 litres of virgin coconut oil per shift. We provide customized plant solutions to help businesses select suitable machinery based on their production targets and operational requirements.
Automatic & Semi-Automatic VCO Machinery
Our VCO processing systems are available in different automation configurations to suit varying production requirements.
Fully Automatic
Designed for higher levels of process automation and continuous production.
Semi-Automatic
Suitable for businesses looking for controlled processing with greater manual operation flexibility.
We also offer Semi-Automatic Virgin Coconut Oil Making Machine options for commercial production requirements.
Years of Experience
Projects Completed
Industries Served
Get the Right Machinery for Your Production Needs
Tell us about your processing requirements and our team will help you identify the right machinery solution.
Talk to our engineering team about machinery capacity
and customized solutions.
Let's Get In Touch
- Our Clients
Trusted by
Leading Brands
Our machines power the success of leading brands across food, beverage, oil, and coconut-based industries.
Years of Experience
Installations Worldwide
Global
Client Network
Virgin Coconut Oil Manufacturing Process

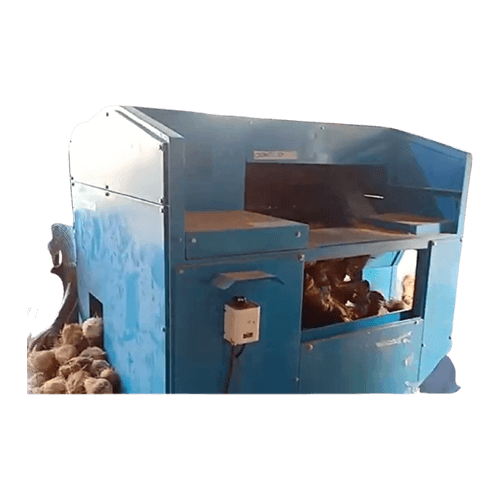

De-Husking – Coconut De-Husking Machine
The coconut husk is removed to prepare the nuts for further processing. The Coconut De-Husking Machine is designed to support efficient husk removal during commercial coconut processing.
| Machine Name | Coconut De-Husking Machine |
| Models | MDH – 2, MDH – 5 |
| Capacity | 800 nuts/hr, 1,000 nuts/hr |
| Material | Mild Steel (MS) |

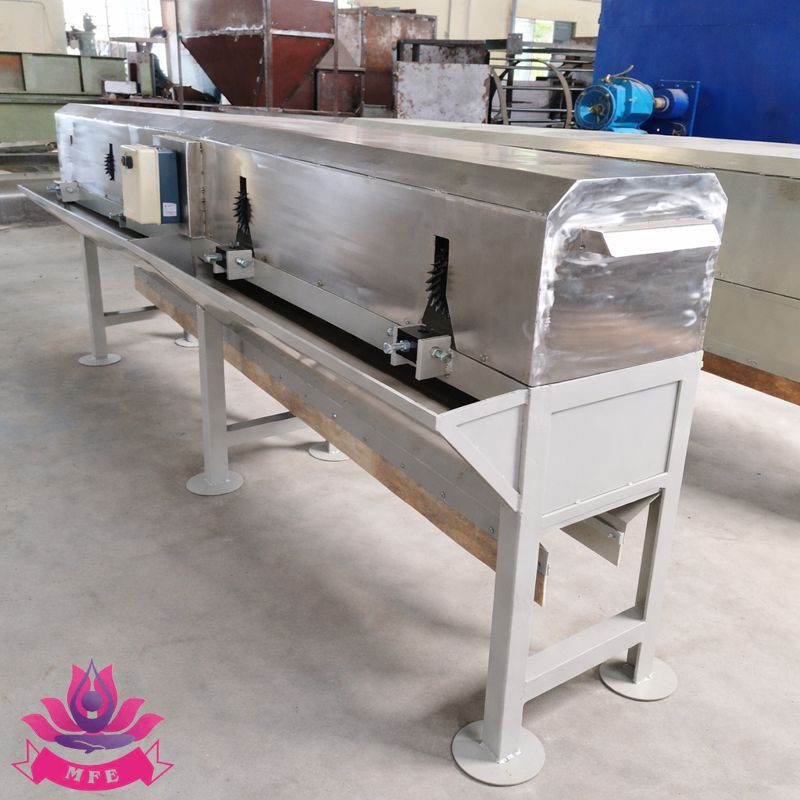

De-Shelling – Coconut De-Shelling Machine
After de-husking, the hard coconut shell is separated from the kernel. The Coconut De-Shelling Machine helps prepare the kernel for subsequent processing stages.
| Machine Name | Coconut De-Shelling Machine |
| Models | MDS – 2S, MDS – 4S |
| Capacity | 250 nuts/hr, 500 nuts/hr |
| Material | SS 304 Food Grade and Mild Steel (MS) |

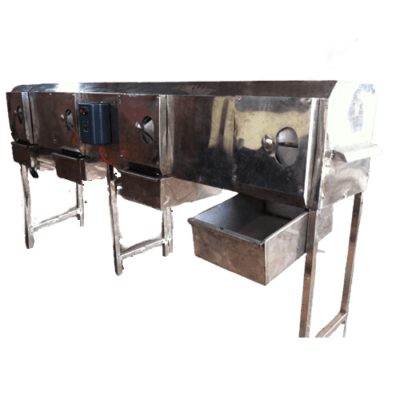

Peeling – Coconut Peeling Machine
The brown outer skin of the coconut kernel is removed to prepare the white kernel for further processing. The Coconut Peeling Machine is designed for efficient peeling in commercial VCO production.
| Machine Name | Coconut Peeling Machine |
| Models | MCP – 2S, MCP – 4S |
| Capacity | 250 nuts/hr, 500 nuts/hr |
| Material | SS 304 Food Grade |
Shredding – Coconut Shredding Machine
The peeled coconut kernel is shredded into smaller pieces to prepare it for milk extraction. Uniform shredding supports efficient processing and helps prepare the coconut for the next production stage.
| Machine Name | Coconut Shredding Machine |
| Models | MCS – 2, MCS – 5 |
| Capacity | 250 kg/hr, 500 kg/hr |
| Material | SS 304 Food Grade |
Washing and Pulverizing – Coconut Pulverizer Machine
The coconut material is cleaned and processed according to the plant’s production requirements. The Coconut Pulverizer Machine reduces the coconut material into finer particles, supporting further processing and extraction.
| Machine Name | Coconut Pulverizer Machine |
| Models | MCPR – 2, MCPR – 5 |
| Capacity | 250 kg/hr, 500 kg/hr |
| Material | SS 304 Food Grade |

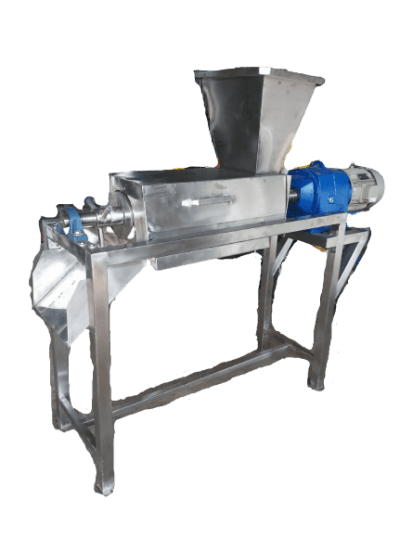

Coconut Milk Extraction – Coconut Milk Extractor Machine
The prepared coconut material is fed into the Coconut Milk Extractor Machine to extract coconut milk. The extracted milk is then transferred for clarification and oil separation.
| Machine Name | Coconut Milk Extractor Machine |
| Models | MME – 5, MME – 7.5, MME – 10 |
| Capacity | 150 litres/hr, 250 litres/hr, 500 litres/hr |
| Material | SS 304 Food Grade |

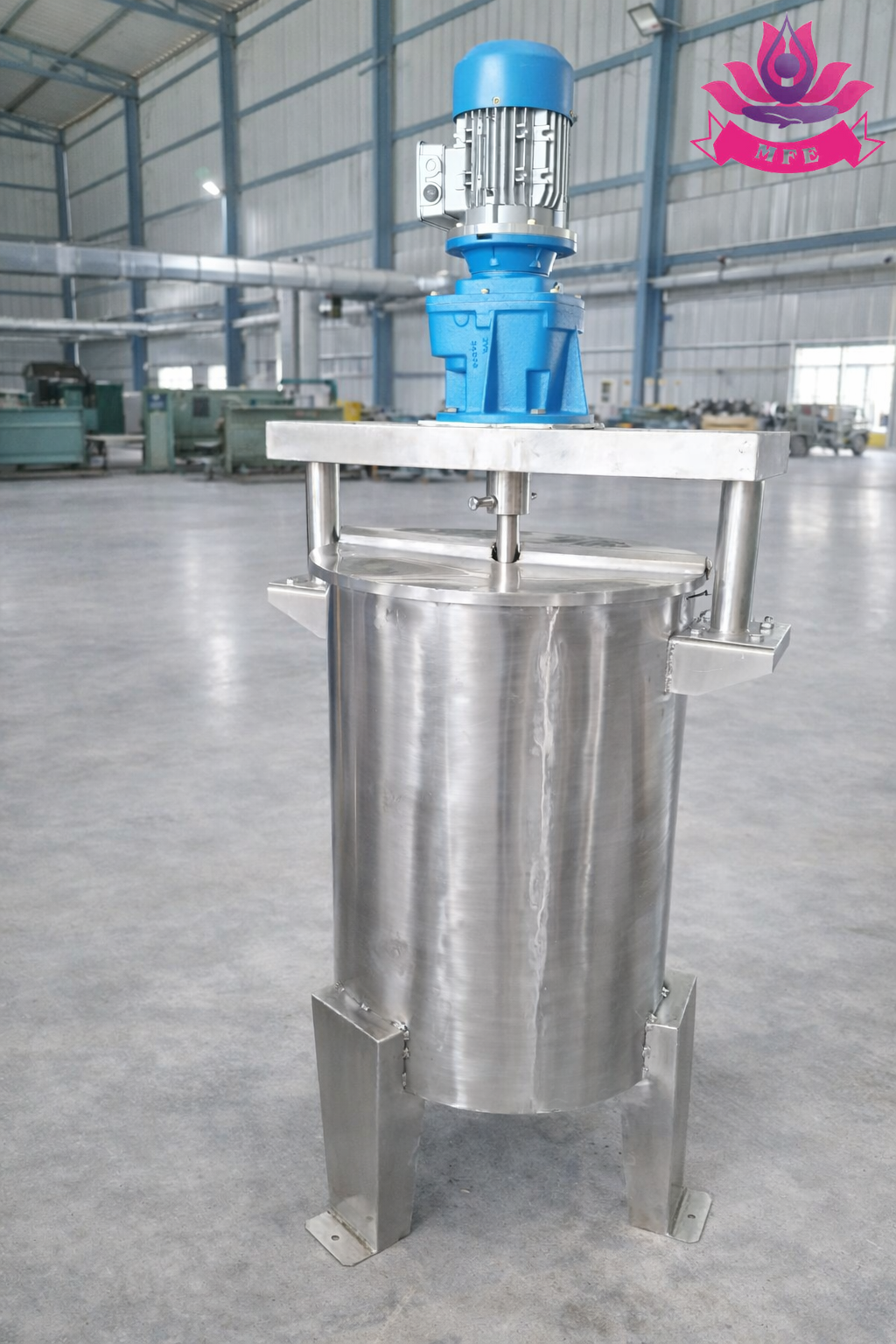

Clarification – Agitator Tank
The extracted coconut milk is transferred to the agitator tank for controlled mixing or holding, depending on the selected processing method. This stage helps prepare the milk for the subsequent oil separation process.
| Machine Name | Agitator Tank |
| Model | MAG – 0.5 |
| Capacity | 100 litres |
| Material | SS 304 Food Grade |

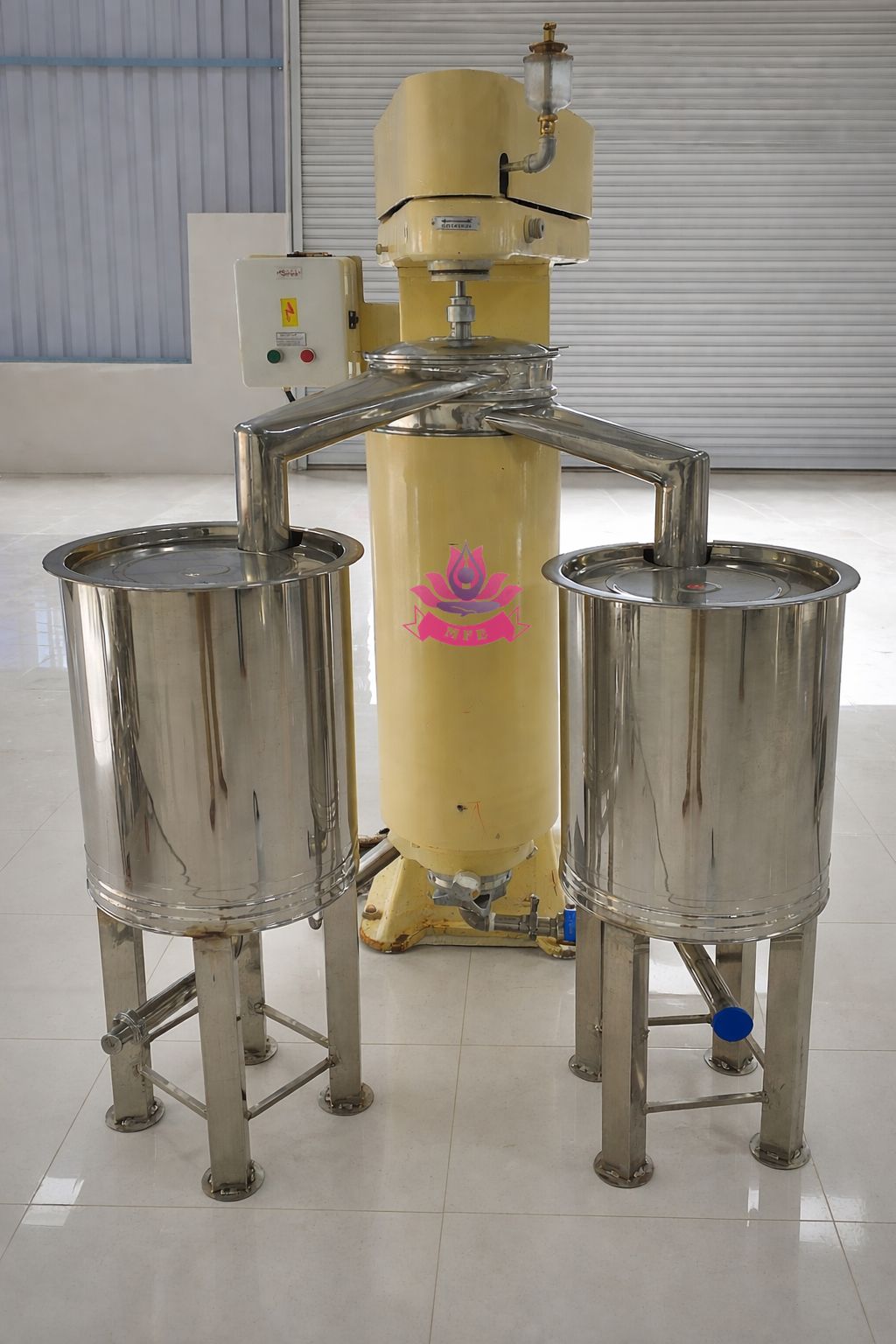

Centrifugation – Oil Separation
The processed coconut milk undergoes centrifugation to separate the oil from the other components. A suitable tubular centrifuge or other compatible separation system can be selected according to the plant’s process design.
Micro Filtration – Virgin Coconut Oil Filtration
The separated virgin coconut oil passes through a suitable micro-filtration system to remove residual particles and improve clarity before storage.
Oil Storage and Packing
The filtered virgin coconut oil is collected in a suitable storage tank before being transferred for packaging. Proper handling and storage help maintain the quality of the finished product.
Features of Our Virgin Coconut Oil Machine
- Fully integrated processing system
- Cold-press extraction process
- Automatic and semi-automatic options
- Multiple production capacity options
- Stainless steel construction for hygienic processing
- Integrated coconut milk extraction system
- Clarification and centrifugation system
- Microfiltration system
- Oil storage arrangement
- Suitable for commercial production
Why Choose Us for Virgin Coconut Oil Plant Machinery?
Experienced Machinery Manufacturer
We specialize in processing machinery solutions for coconut and related applications.
Complete Processing Solution
Our VCO system combines multiple processing stages into an integrated plant.
Multiple Capacity Options
Choose production capacities based on your input and required output.
Automatic & Semi-Automatic Options
Machinery configurations can be selected based on your production requirements.
Industrial Processing Expertise
We provide machinery solutions for commercial coconut processing applications.
Technical Support
Our team can assist with machinery selection and processing requirements.
Virgin Coconut Oil Machine Applications
Applications of Virgin Coconut Oil Processing Machinery
Our virgin coconut oil extraction machine can be used for commercial production of virgin coconut oil in:
Coconut oil processing units
Virgin coconut oil manufacturing plants
Food processing industries
Coconut-based product manufacturing
Small to medium-scale commercial production
Large-scale VCO production
How to Choose the Right VCO Machine
Production Capacity
Select a Virgin Coconut Oil Plant Machinery configuration based on your required daily input and output capacity.
Automation Level
Choose between semi-automatic and fully automatic systems depending on production volume and operational requirements.
Extraction Process
A suitable virgin coconut oil extraction machine should support efficient coconut milk extraction, separation, filtration, and oil recovery.
Plant Configuration
Consider the complete processing line, including de-husking, de-shelling, peeling, shredding, milk extraction, centrifugation, filtration, and storage.
Budget & Plant Cost
Compare the virgin coconut oil making machine price and overall virgin coconut oil manufacturing plant cost based on capacity and configuration.
Future Production Requirements
Choose a machine that can support your planned production expansion and long-term business requirements.
